Over a Year ago, I created a Conky configuration file for the Raspberry Pi. I final got around to tailoring it for my desktop Linux box. You find both version on GitHub. Screen shot is at the bottom.

# --------------------------------------------------------------------- #
#
# .conkyrc - derived from various examples across the 'net
#   Designed to support a 4 core processer running Ubunutu
#
# You can restart conky by running
#       killall -SIGUSR1 conky
#
# --------------------------------------------------------------------- #


# -------------------- Conky's Run Time Parameters -------------------- #

update_interval 2.0         # Conky update interval in seconds
total_run_times 0           # Number of updates before quitting.  Set to zero to run forever.
no_buffers yes              # Subtract file system buffers from used memory?
cpu_avg_samples 2           # Number of cpu samples to average. Set to 1 to disable averaging
net_avg_samples 2           # Number of net samples to average. Set to 1 to disable averaging


# -------------------- Conky's General Look & Feel -------------------- #

# --- defualt values --- #
default_color grey          # Default color and border color
default_bar_size 0 6        # Specify a default width and height for bars.
default_gauge_size 25 25    # Specify a default width and height for gauges.
default_graph_size 0 25     # Specify a default width and height for graphs.
default_outline_color green # Default border and text outline color
default_shade_color yellow  # Default border and text shading color

# --- predefined colors - http://www.kgym.jp/freesoft/xrgb.html --- #
color0 FFFFFF               # white
color1 FFA500               # orange
color2 B22222               # firebrick
color3 696969               # dim gray
color4 D3D3D3               # light gray
color5 2F4F4F               # dark slate gray
color6 FFEC8B               # light golden rod
color7 54FF9F               # sea green
color8 FF8C69               # salmon
color9 FFE7BA               # wheat

# --- window layout & options --- #
own_window yes              # Conky creates its own window instead of using desktop
own_window_type normal      # If own_window is yes, use type normal, desktop, or override
own_window_transparent yes  # Use pseudo transparency with own_window?
own_window_colour blue      # If own_window_transparent is no, set the background colour
double_buffer yes           # Use double buffering (reduces flicker)
use_spacer right            # Adds spaces to stop object from moving
maximum_width 600           # Maximum width of window in pixels
own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager

# --- window placment --- #
alignment top_right         # window placement can be top_right, top_left, bottom_left, bottom_right

# --- borders, margins, and outlines --- #
draw_graph_borders yes      # Do you want to draw borders around graphs
border_inner_margin 9       # Window's inner border margin (in pixels)
border_outer_margin 5       # Window's outer border margin (in pixels)
gap_x 10                    # Gap between borders of screen and text (on x-axis)
gap_y 40                    # Gap between borders of screen and text (on y-axis)
border_width 10             # Window's border width (in pixels)

# --- Text --- #
draw_outline no             # Do you want ot draw outlines
draw_shades no              # Do you want to draw shades
draw_borders no             # Do you want to draw borders around text
uppercase no                # set to yes if you want all text to be in uppercase
use_xft yes                 # use the X FreeType interface library (anti-aliased font)
xftfont Monospace:size=8:weight=bold    # Xft font to be used


# -------------------- Conky's Displayed System Monitoring Parameters -------------------- #
TEXT
# General system information
${color1}SYSTEM INFORMATION ${hr 2}$color
${color0}System: $color$nodename ${alignr}${color0}Uptime: $color$uptime
${color0}Kernel: $color$kernel${alignr}${color0}Arch: $color$machine
${color0}Distribution: $color${execi 99999 lsb_release --description | awk '{ print $2" "$3 }'}
${color0}CPU Type: $color${execi 99999 grep 'model name' /proc/cpuinfo | awk '{ print $6 }' | sed '2,$d'} / ${execi 99999 grep 'model name' /proc/cpuinfo | wc -l} Cores
${color0}CPU Speed: $color${freq 0} MHz Current / ${execi 99999 grep 'model name' /proc/cpuinfo | awk '{ print $9 }' | sed '2,$d'} Max
${color0}Processor Temperature: $color${acpitemp}°C
#${color0}MAC Address (eth0): $color${execi 99999 cat /sys/class/net/eth0/address }
#${color0}MAC Address (eth1): $color${execi 99999 cat /sys/class/net/eth1/address }
#${color0}MAC Address (wlan0): $color${execi 99999 cat /sys/class/net/wlan0/address }

# CPU information
${color1}CPU ${hr 2}$color
${color0}CPU Usage:$color ${cpu cpu0}% ${color7}${cpubar cpu0}
${cpugraph cpu0 0000ff 00ff00}$color
${color0}Core 1:$color ${freq 1} MHz ${cpu cpu1}% ${color5}${cpubar cpu1}$color
${color0}Core 2:$color ${freq 2} MHz ${cpu cpu2}% ${color5}${cpubar cpu2}$color
${color0}Core 3:$color ${freq 3} MHz ${cpu cpu3}% ${color5}${cpubar cpu3}$color
${color0}Core 4:$color ${freq 4} MHz ${cpu cpu4}% ${color5}${cpubar cpu4}$color

# Top running processes
${color1}TOP 5 PROCESSES ${hr 2}$color
${color0}Processes:$color $processes  ${color0}Running:$color $running_processes
${color0}Threads:$color $threads  ${color0}Running:$color $running_threads
${stippled_hr 2}
${color0}CPU Usage$color
${color3} NAME              PID    CPU %   MEM$color
${color2} ${top name 1} ${top pid 1} ${top cpu 1} ${top mem 1}$color
 ${top name 2} ${top pid 2} ${top cpu 2} ${top mem 2}
 ${top name 3} ${top pid 3} ${top cpu 3} ${top mem 3}
 ${top name 4} ${top pid 4} ${top cpu 4} ${top mem 4}
 ${top name 5} ${top pid 5} ${top cpu 5} ${top mem 5}
${stippled_hr 2}
${color0}Mem Usage$color
${color3} NAME              PID    CPU %   MEM$color
${color2} ${top_mem name 1} ${top_mem pid 1} ${top_mem cpu 1} ${top_mem mem 1}$color
 ${top_mem name 2} ${top_mem pid 2} ${top_mem cpu 2} ${top_mem mem 2}
 ${top_mem name 3} ${top_mem pid 3} ${top_mem cpu 3} ${top_mem mem 3}
 ${top_mem name 4} ${top_mem pid 4} ${top_mem cpu 4} ${top_mem mem 4}
 ${top_mem name 5} ${top_mem pid 5} ${top_mem cpu 5} ${top_mem mem 5}

# Memory and swap space untilization
${color1}MEMORY & SWAP ${hr 2}$color
${color0}RAM Usage: ${color}$mem / $memmax
$memperc% ${color6}${membar}$color
${color0}Swap Usage: ${color}$swap / $swapmax
$swapperc% ${color6}${swapbar}$color

# File System utilization
${color1}FILE SYSTEM ${hr 2}$color
${color0}root:$color ${fs_used /} / ${fs_size /}
${fs_used_perc /}% ${color8}${fs_bar /}$color
${color0}boot:$color ${fs_used /boot} / ${fs_size /boot}
${fs_used_perc /boot}% ${color8}${fs_bar /boot}$color
${color0}home:$color ${fs_used /home} / ${fs_size /home}
${fs_used_perc /home}% ${color8}${fs_bar /home}$color
${color0}backup:$color ${fs_used /mnt/backup} / ${fs_size /mnt/backup}
${fs_used_perc /mnt/backup}% ${color8}${fs_bar /mnt/backup}$color

# Hard Drive Utilization
${color1}HARD DRIVE I/O ${hr 2}$color
${color0}Device:$color /dev/sda
${color0}Reads: $color${diskio_read /dev/sda}/s${alignr}${color0}Writes: $color${diskio_write /dev/sda}/s
${color8}${diskiograph_read /dev/sda 20,100 33FF00 FF3333 scale -t}$color${alignr}${color8}${diskiograph_write /dev/sda 20,100 33FF00 FF3333 scale -t}$color
${color0}Device:$color /dev/md0
${color0}Reads: $color${diskio_read /dev/md0}/s${alignr}${color0}Writes: $color${diskio_write /dev/md0}/s
${color8}${diskiograph_read /dev/md0 20,100 33FF00 FF3333 scale -t}$color${alignr}${color8}${diskiograph_write /dev/md0 20,100 33FF00 FF3333 scale -t}$color

# Ethernet utilization
${color1}NETWORKING ${hr 2}$color
${color0}Wired (${addr eth0})
${color0}Down:$color ${downspeed eth0}/s ${alignr}${color0}Up:$color ${upspeed eth0}/s
${color0}Total:$color ${totaldown eth0} ${alignr}${color0}Total: $color${totalup eth0}
${color0}${downspeedgraph eth0 25,120 000000 00ff00} ${alignr}${upspeedgraph eth0 25,120 000000 ff0000}$color
${stippled_hr 2}
${color0}Wireless (${addr wlan0})
${color0}Down:$color ${downspeed wlan0}/s ${alignr}${color0}Up:$color ${upspeed wlan0}/s
${color0}Total:$color ${totaldown wlan0} ${alignr}${color0}Total: $color${totalup wlan0}
${color0}${downspeedgraph wlan0 25,120 000000 00ff00} ${alignr}${upspeedgraph wlan0 25,120 000000 ff0000}$color

# Print the tail of the Linux system log
${color1}LOG FILES ${hr 2}$color
${color0}SysLog Messages$color
${color4}${font Arial:size=7}${execi 30 tail -n3 /var/log/syslog | fold -w50}$color$font

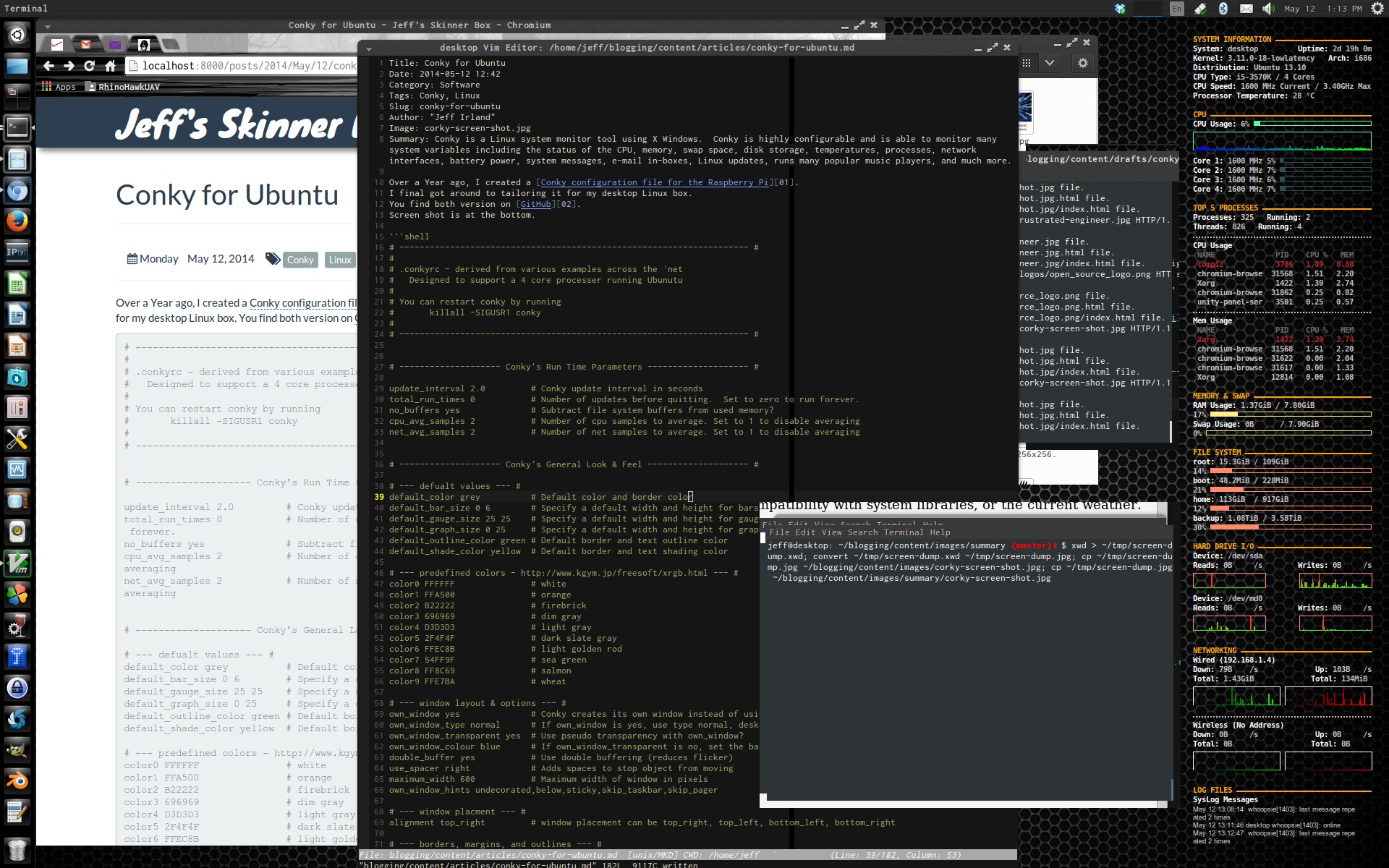

Screen shot is below with Corky instance on the right side:

Corky Screen Shot
